Spare parts for MÖSCHA swivel distributors

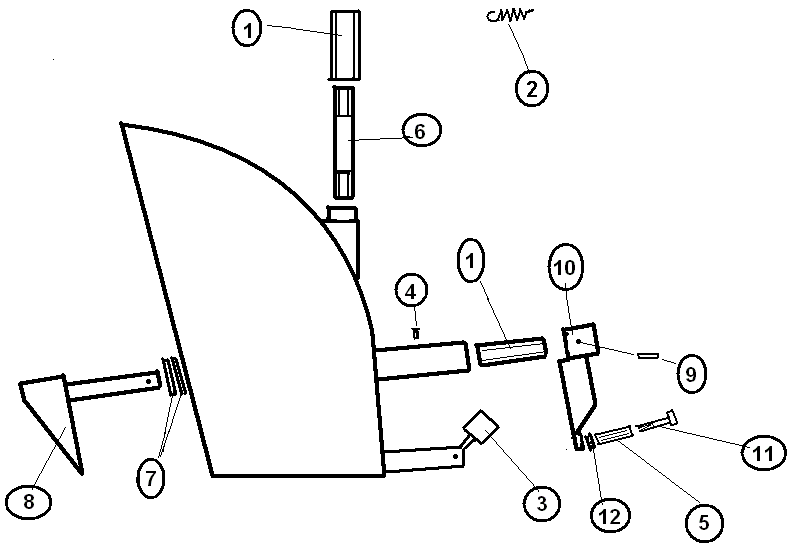

| Nr. | Bild | Name Order | -Nr. | Price |
|---|---|---|---|---|

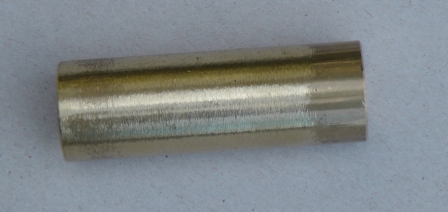

| 1 |  | Brass box | 414 | 18.00 € |

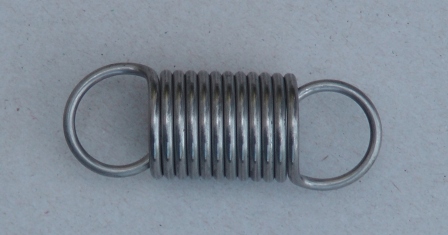

| 2 |  | Tension spring | 401 | 6,00 € |

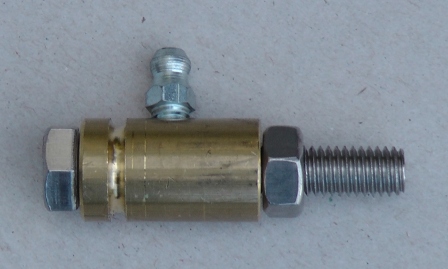

| – |  | Swivel joint brass roller | 405 | 9,50 € |

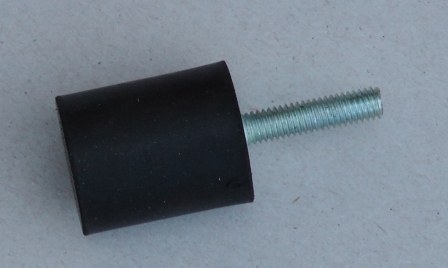

| 3 |  | rubber buffer | 402 | 6,00 € |
| 4 | – | Plastic sleeve (for stop) | 403 | 1,10 € |

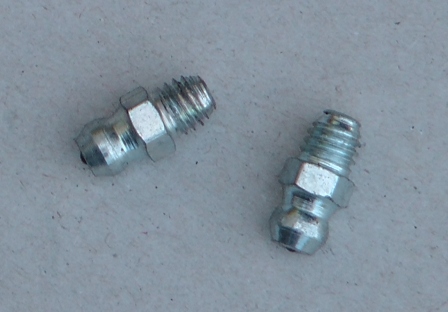

| – |  | grease nipple | 426 | 0,30 € |

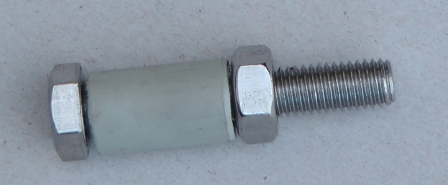

| – |  | striker bolt (mit Kunststoffhülse) | 422 | 3,20 € |
| 6 |  | stainless steel table (mit 2×M16) | 417 | 18,00 € |

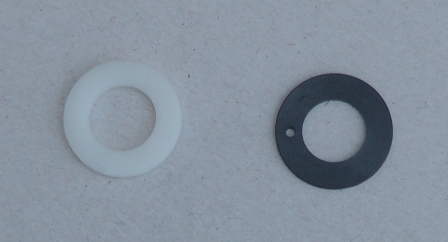

| 7 |  | plastic discs (1,5 mm) / polyamide disc (3,0 mm) / shim white | 411 / 410 | 1,10 € / 0,90 € |

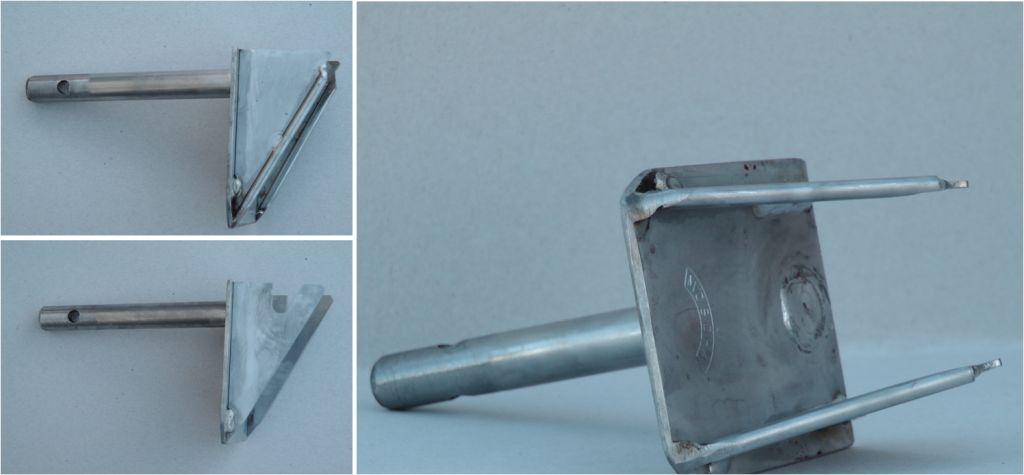

| 8 |  | deflector plate | 430 | 65,00 € |
| 9 |  | clamping sleeve | 424 | 0,60 € |

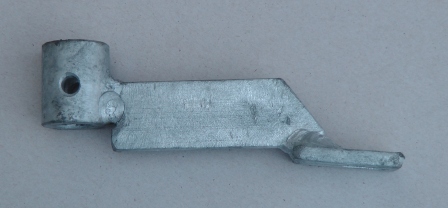

| 10 |  | shift lever | 432 | 30,00 € |
Spare parts: Repair kits
| picture | Name | Order-Nr. | Price |
|---|---|---|---|

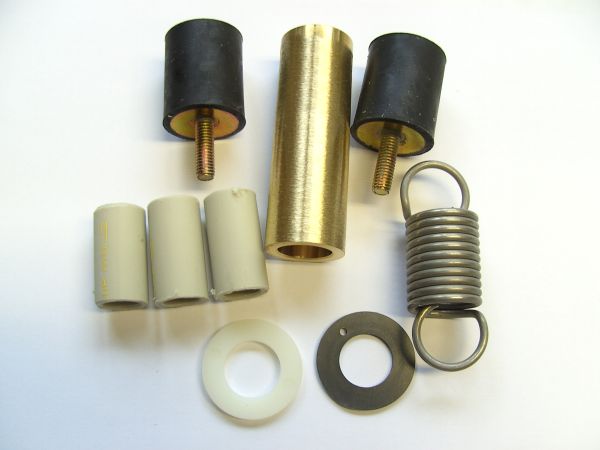

| Repair kit for swivel distributor STANDARD (most commonly required parts) | 440 | 39,00 € |

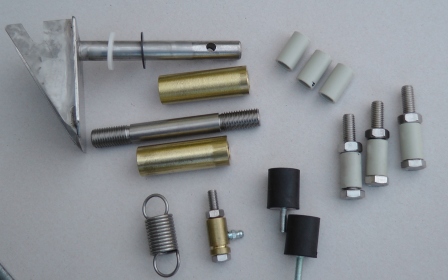

 | Repair kit for swivel distributor COMPLETE (all wear parts) | 441 | 150.00€ |
